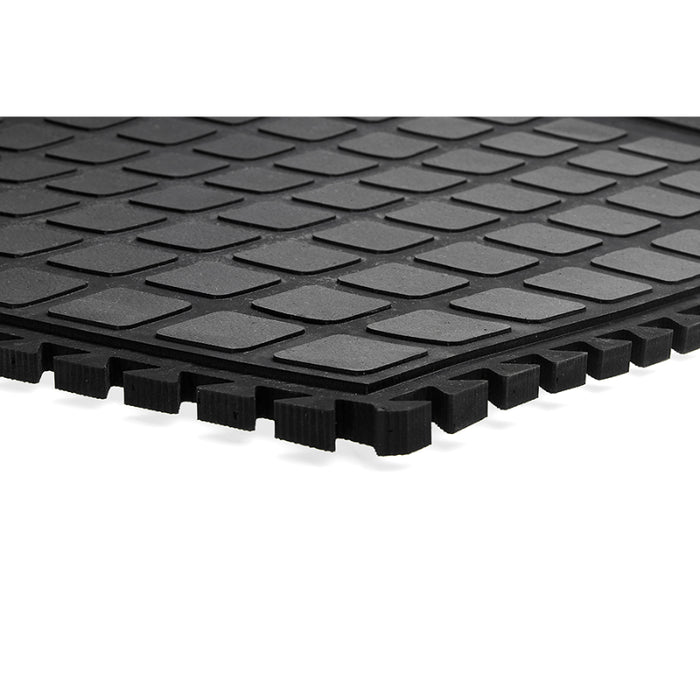

Hog Heaven® Modular Tiles Anti Fatigue Tiles- 4471 Series - Black

• 18" Center Tile: 18" x 18"

• 18" Side Tile: 18" x 21.875"

• 18" Corner Tile: 21.875" x 21.875"

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

Specifications:

SURFACE
Material: Nitrile rubber

CUSHION
Material: Closed-cell nitrile/PVC-blended foam
Density: 7.0 to 9.0 lbs/ft³

Overall Mat Thickness: 3/4 inch (0.75")

STANDARDS & TESTING:

• Passes flammability standard BS-4790 Metal nut Method
• Passes flammability standard CPSC FF 1-70
• Certified high-traction by the National Floor Safety Institute (NFSI)
• ESD Rating of electrically conductive
• Compression Deflection:
      42.3% at 20 psi
      56.8% at 40 psi
• ASTM C 1028-96 static coefficient of friction:
      Dry 0.74
      Wet 0.77

• Scrub with a deck brush (as needed) using a detergent with a neutral pH
• Rinse with a hose or pressure washer
• Hang to dry

Mats and tiles should always be dry before they are placed back in service.

Installation Instructions:

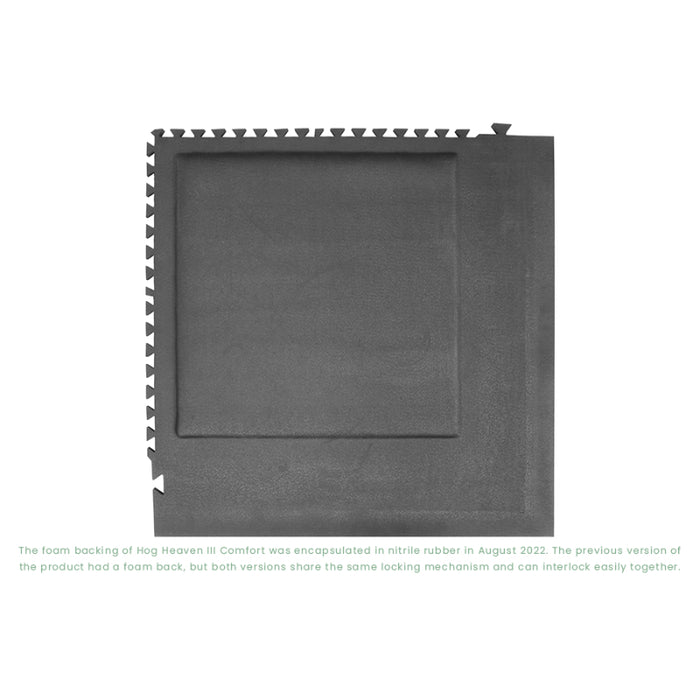

There are three components in the Hog Heaven Modular Tile System: the corner tile, the side tile, and the middle tile.

• The corner tile has a border on two adjacent sides.

• The side tile has a border on one side.

• The middle tile has no borders.

How to Cut Hog Heaven Tile Corners:

You will need cut-resistant gloves, a linoleum knife, and a metal straight edge.

1. To cut an inside corner on modular tiles, lay out the entire area of tiles making sure to overlap the side tiles forming the desired inside corner.
2. Lay a metal straight edge at a 45 degrees angle on top of the inside corner. Make sure to lift up the top overlap edging with the metal edge in place to see where the cut will end up to ensure you will be satisfied with the location.
3. Hold the metal straight edge firmly by placing downward pressure on it. Using a linoleum knife, make one firm, clean cut through both tiles. A utility knife will not cut deep enough through both tiles, and you will end up making two or three cuts (and the angles may not line up perfectly).
4. You should have two pieces from each tile after the cut is made. Remove those pieces.5. After making the cut, lay the inside corners of the two tiles side by side. Some users choose to glue the corner together. This can be done by adding a few drops of super glue to one side of the edging and attaching it to the other.
